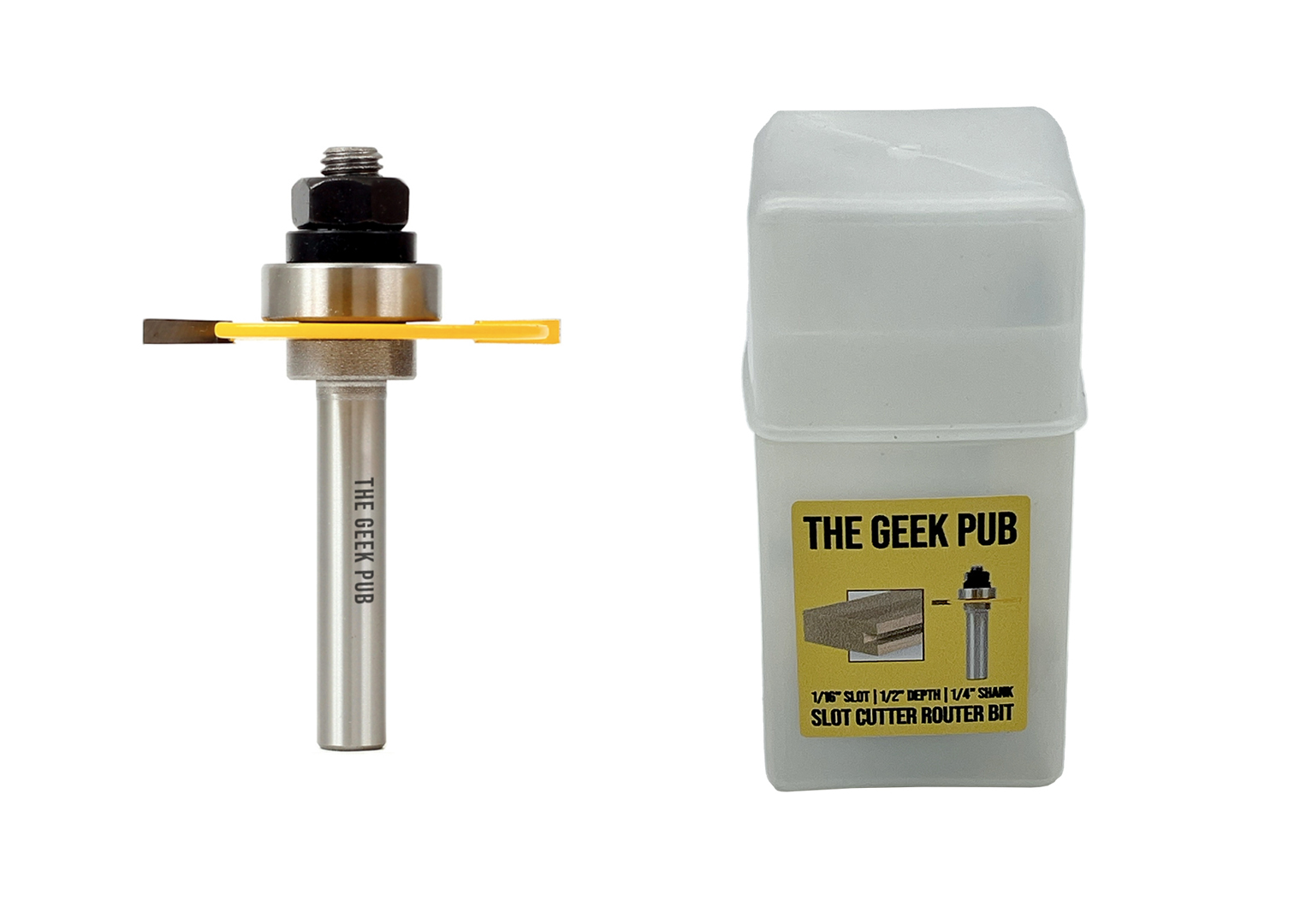

T-Molding Slot Cutter (1/16″ Slot, 1/4″ Shank)

SKU: GPRB-11614-SC

The Geek Pub T-Molding slot cutter for 1/4″ (~6mm) shank handheld routers and router tables.

  • SLOT CUTTER – Perfect for cutting slots for T-molding, joinery, edge shaping, and other general slot cutting needs.
  • PREMIUM – Carbide blade will last longer and provide for higher quality clean cuts on your wood surfaces. Quality bearings will not chirp or otherwise wear prematurely.
  • COMPATIBLE – Works with all router tables and handheld routers that accept a 1/4in shank router bit.
  • SLOT DEPTH – Included guide bearing cuts to 1/2in depth. Guide bearing can be can be swapped with any standard router bit bearing to adjust depth of cut (additional bearings not included).
  • MULTI-MATERIAL – Works well with most any typical hardwood, softwood, composites, plywood, and MDF.

$12.99

Out of stock

The Geek Pub T-Molding slot cutter for 1/4″ (~6mm) shank handheld routers and router tables.

  • SLOT CUTTER – Perfect for cutting slots for T-molding, joinery, edge shaping, and other general slot cutting needs.
  • PREMIUM – Carbide blade will last longer and provide for higher quality clean cuts on your wood surfaces. Quality bearings will not chirp or otherwise wear prematurely.
  • COMPATIBLE – Works with all router tables and handheld routers that accept a 1/4in (~6mm) shank router bit.
  • SLOT DEPTH – Included guide bearing cuts to 1/2in (13mm) depth. Guide bearing can be can be swapped with any standard router bit bearing to adjust depth of cut (additional bearings not included).
  • MULTI-MATERIAL – Works well with most any typical hardwood, softwood, composites, plywood, and MDF.

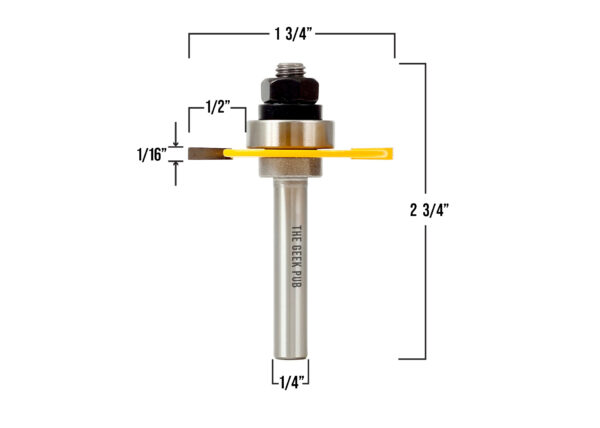

The Geek Pub 1/4″ slot cutter router bit cuts a 1/16in (1.6mm) slot in most hardwood, softwood, composite material, plywood, particle board, or MDF. The slot cutter depth using the included bearing is 1/2in deep. The bearing can be changed with larger or smaller bearings which can be purchased at most hardware stores to change the depth of cut (not included). This slot cutter bit is designed for a 1/4in shank router table or handheld router. High quality carbide teeth and bearing are long lasting and will provide a clean cut in most quality materials. The most common cause of burning and damaging slot cutting router bits is two fold: 1) running the blade too fast. Slot cutters should generally be run at slow speeds, and 2) not taking multiple passes in harder materials. You should take multiple light passes on very hard materials rather than a single full depth pass.
