Arcade Control Kit 2-Player LED Green/Green

All green Sanwa-style arcade controls used in The Geek Pub arcade cabinet with LED. Buttons are made from high quality heat resistant plastic with removable top clear covers allowing placement of labels or graphics to be lit from behind.

• LED Lit buttons with clear removable caps for adding labels or graphics
• Zero-Delay USB arcade controller works with Windows, Linux, or Raspberry Pi
• Perfect for MAME or JAMMA cabinets
• Works great with Raspberry Pi and RetroPie projects
• Easy install, no tools required
• Perfect for your DIY arcade cabinet build

Buttons contain built-in micro switches, no need to purchase additional switches. 5V LEDs are powered from the USB controller, no additional power supply is needed.

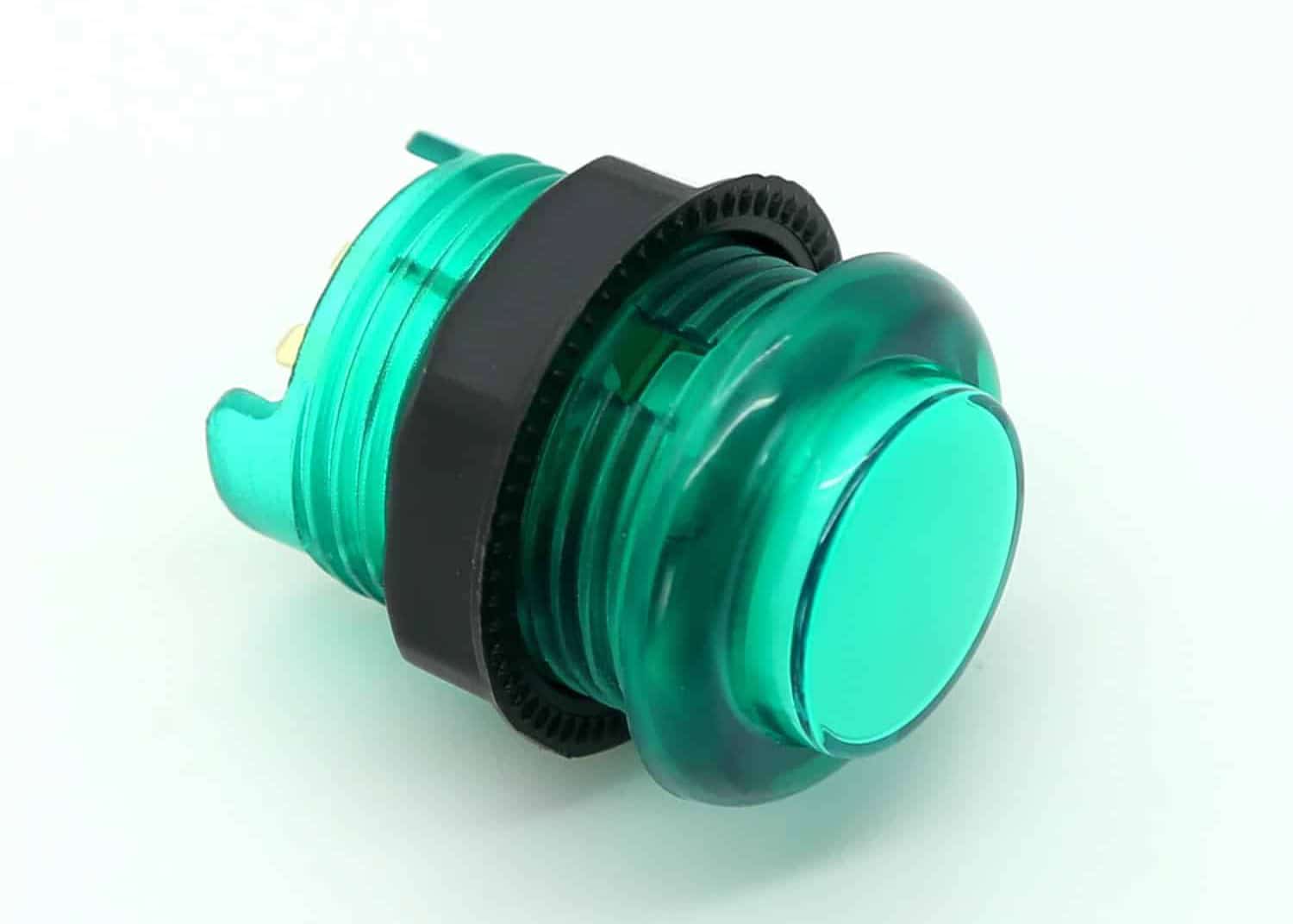

High Quality Arcade Buttons

4-pin wiring (switch/LED) Gold plated electrical contacts 10M+ press service life	LED Backlit Can be powered separately Translucent caps and body	High quality ABS plastic Backing nut included Removable caps to add labels

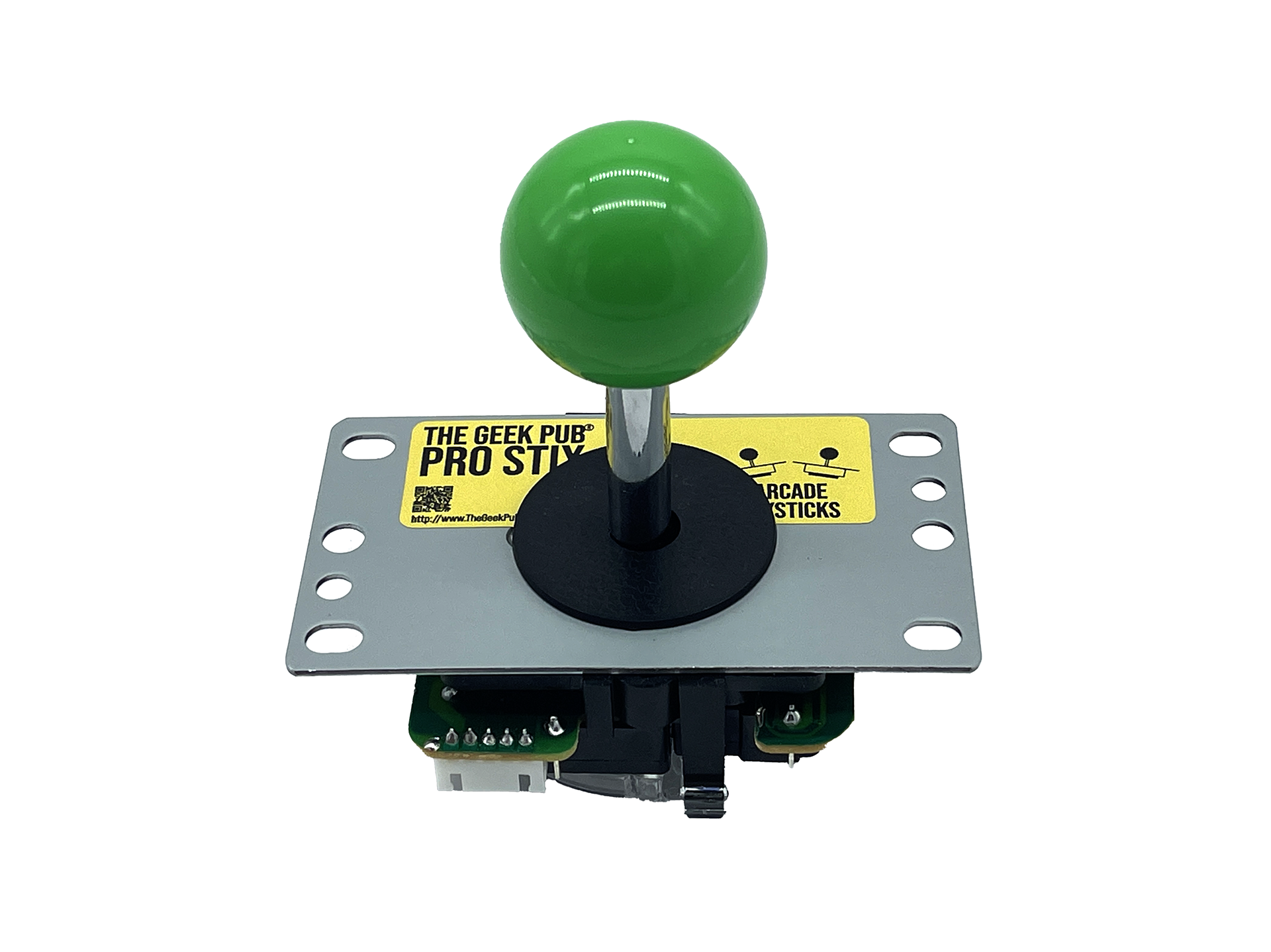

High Quality Arcade Joysticks

Geek Pub PRO STIX Standard 5-pin connectors 8-Way Joystick 1M+ moves service life	Wear resistant metal base Selectable gate orientation Option to add restrictor gates	Includes black dust washers M6-10 ball threads (replaceable) High quality construction

High Quality Zero-Delay Arcade Encoders

USB Type-B connecter Optional USB header B1-B12 buttons terminals 5 pin & 2 pin joystick terminals Auto, Turbo, Select, Mode terminals 2X 5V power terminals	2X USB cables 2X 5 pin joystick cables 20X 2 pin button cables 2X LED chain cables	Antistatic bagging High quality instructions

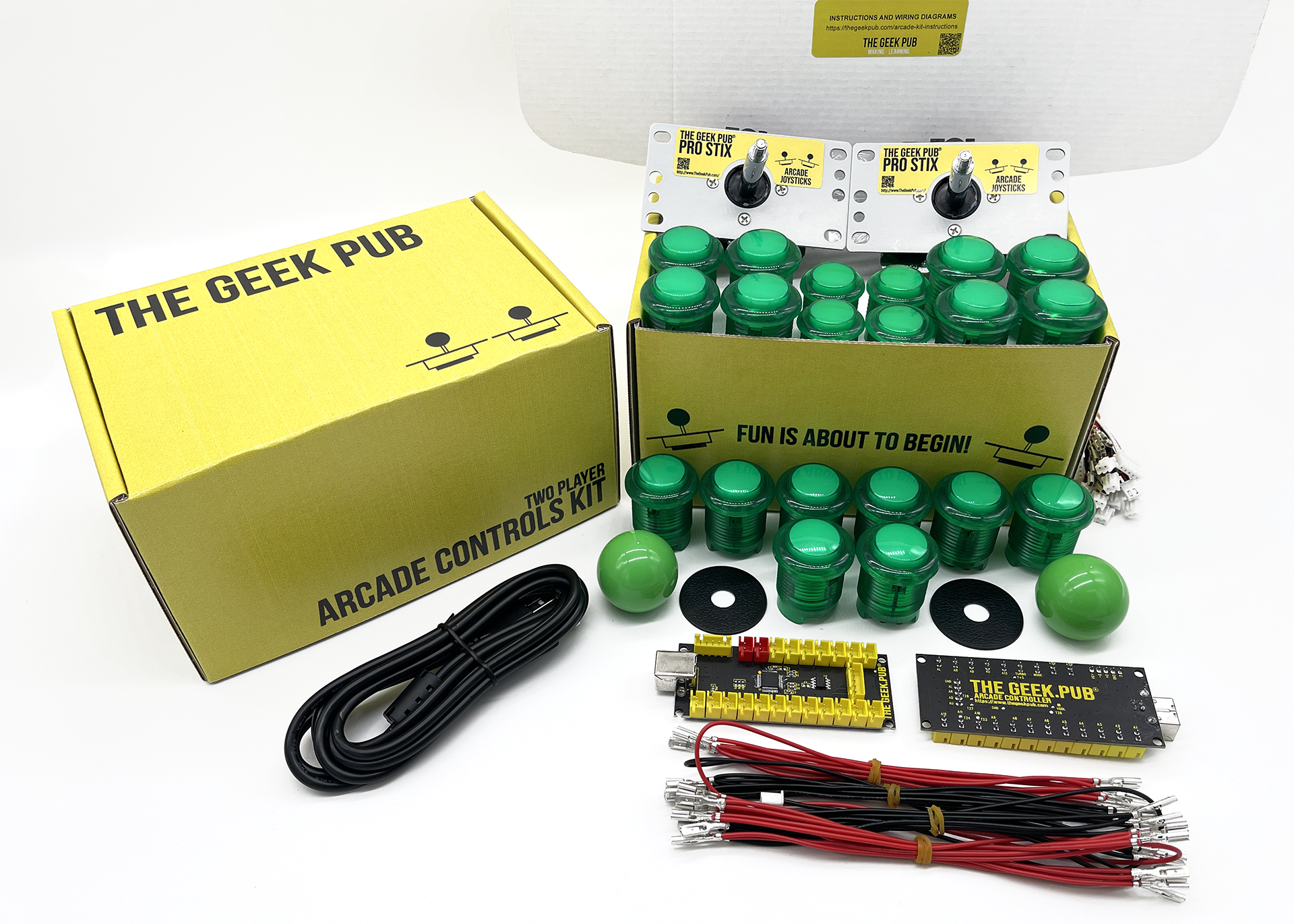

This kit contains the necessary components for a two player arcade cabinet with green components:

• 2 Zero-Delay LED USB encoders
• 2 USB cables
• Wiring for joysticks
• Wiring for buttons
• 4 green 24mm ring-fixing LED push buttons (start or select buttons)
• 16 green 30mm ring-fixing LED push buttons (gaming buttons)
• 2 green 5 pin 8 way PRO STIX joystick
